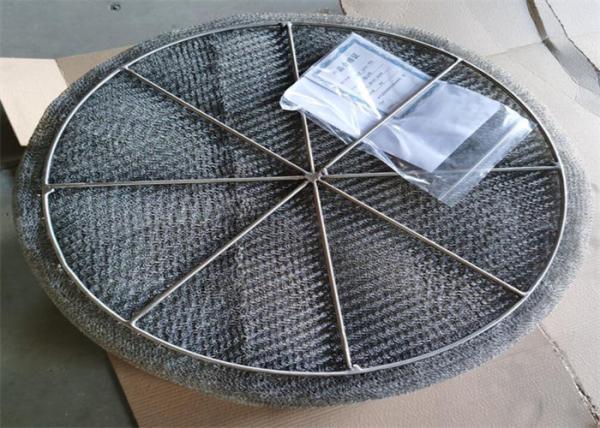

Wire Diameter 0.23mm Chemically Stable Stainless Steel 304 Demister Pad
Demister Pad Characteristics
Demister pad pads use advanced technology to enhance performance efficiency (99% efficiency over 2 microns) and advanced low-corrosion alloys for long life (3-5 times lower corrosion than conventional materials).
Demister Pad Specifications
-
Material SS316
-
Shape & Size customization
-
Mesh Thickness 80 mm
-
Demister Height 80 mm
-
Wire Diameter 0.15mm
-
Mesh Density 128 kg/m3
-
Void Fraction 0.984 /
-
Specific Area 430 m2/m3
-
Grids crimped mesh + curved ss plate mm
Applications Of Some Main Types Of Demister Pad:
| Style | Density kg/m3 | Free Volume % | Surface Area m2/m3 | Meta | York | Becoil | Knit mesh | Vico-Tex | Top | Koch | Acs |
| H | 80 | 99 | 158 | Hi-Thruput | 931 | 954 | 4536 | 160 | B | 511 | 7CA |
| L | 120 | 98.5 | 210 | | 422 | | | | | | |
| N | 144 | 98.2 | 280 | Nu-Standard | 431 | | 9030 | 280 | A | 911 | 4CA |
| SN | 128 | 98.4 | 460 | | 326 | | | 415 | | 706 | |
| SL | 193 | 97.5 | 375 | Xtra-Dense | 421 | 890 | 9033 | 380 | C | 1211 | 4BA |
| SM | 300 | 96.2 | 575 | | | | | | | | |
| SH | 390 | 95 | 750 | | | | | | | | |
| T | 220 | 97.2 | 905 | | | | | | | | |
| R | 432 | 94.5 | 1780 | Multi-Strand | 333 | | | 800 | | | |
| W | 220 | 97.2 | 428 | Wound | | | | | | | |
| GS | 160 | 96.7 | 5000 | | 371 | | | | | | |
-
Mesh Density 80kg/m³, is used for the case that velocity is big, a small pressure drop is required, or collection of big particles or high efficiency is not required. High-treatment style.
-
Mesh Density 128kg/m³, Domestic standard for general purpose application.
Our Service
1. OEM&ODM.
2. Strict quality control by our QC team.
3. Shipment (by sea or by air)according to your requirements.
4. Flexible and diverse payment ways can be chosen, for your convenience.
Company Profile
Anping County Hardware Mesh Products Co., Ltd. is located in Anping County, Hebei Province, known as the "Hometown of Chinese Wire Mesh". The company is a dedicated manufacturer of wire mesh demisters. The company has more than 90 sets of knitted mesh equipment. The wire mesh demister is the main product of our company. Most of our employees are operation, maintenance, and installation personnel with practical experience, who can provide customers with the required engineering consultation and installation of tank filtration. solution.Nearly 20 years of experience producing mist eliminator mats, knitted wire mesh, and other packaging materials.
We have ISO9001 certification and a strict quality control system in the QC department of the enterprise.
We claim that all mist eliminator pads our customers receive are qualified and perform flawlessly. We have different specifications.
The filtration fineness can reach 3μm~5μm. In addition to standard and popular sizes, we can also customize specific applications according to customer needs.
Through continuous on-the-spot inspections, personal exchanges and cooperation with customers, and comprehensive discounts and technical support, we have won strong customer support and praise during the company's development.
The company's performance has maintained an annual output value growth rate of 30-40. Our employees pursue the policy of "enterprising, truth-seeking, rigorous and united", continue to develop and innovate, take technology as the core, and wholeheartedly provide you with cost-effective products, high-quality engineering design, and services.
Welcome customer consultation and I sincerely look forward to cooperating with you!
